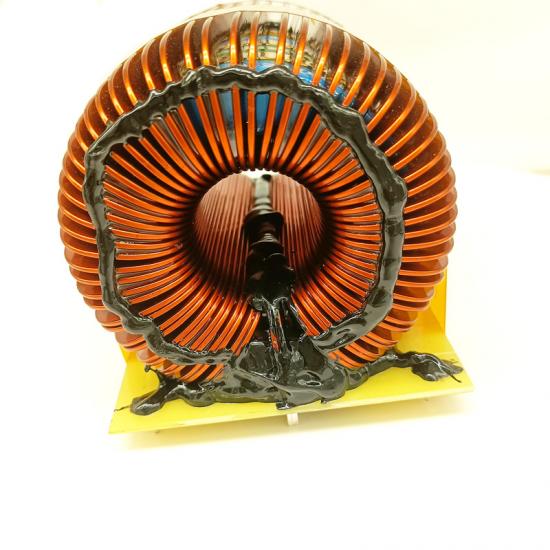

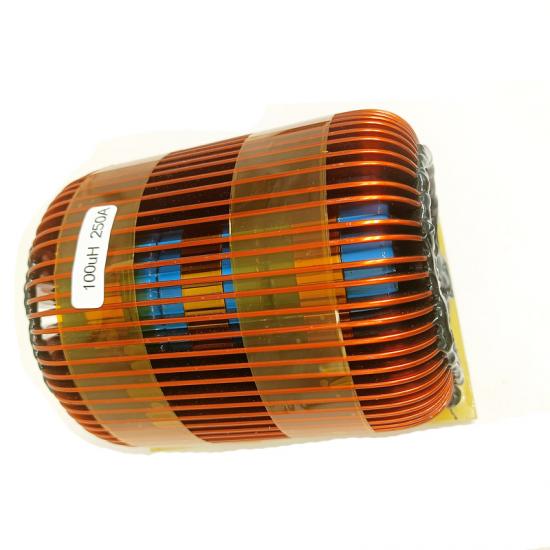

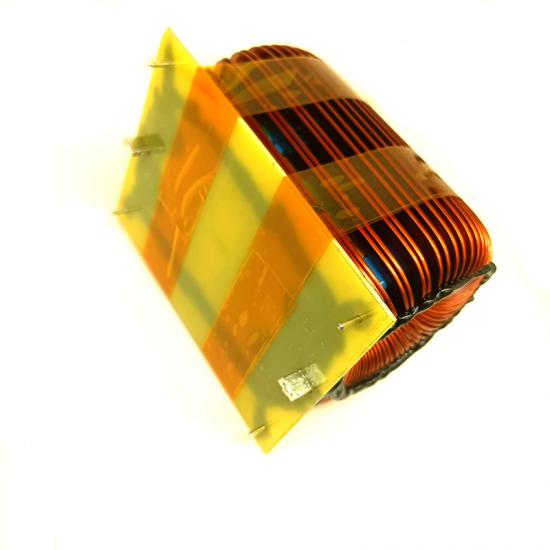

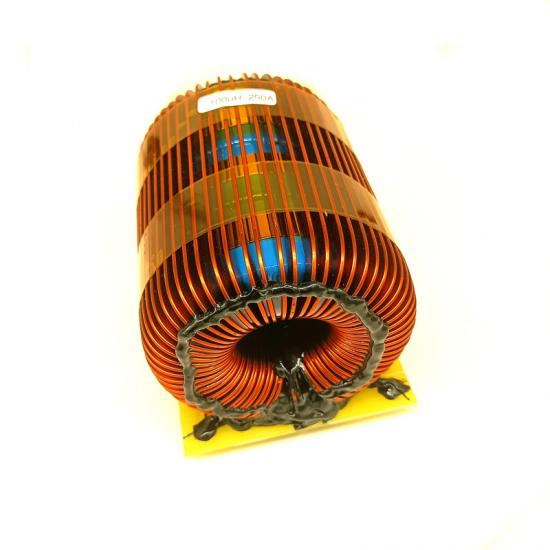

Vertical Type Flat Copper Wire Power Inductor 200uH 150A EV Charge Pole Inductor

Vertical Type Flat Copper Wire Power Inductor 200uH 150A EV Charge Pole Inductor

This 200uH power inductor is vertical type design, manufactured with Iron Power Core & 1*8*2P QZY-2 Copper Wire. With flat wire surface area up to 60% more perfect performance of 150uh@250A, popular in EV Pole Charge application.


  • Product Detail

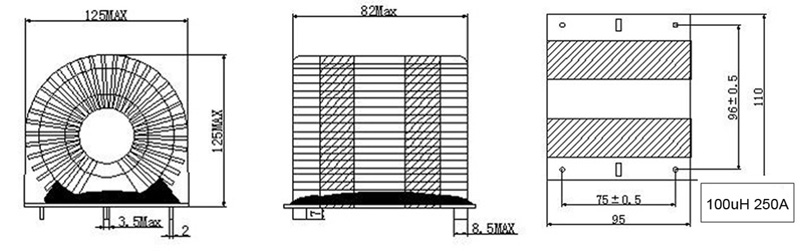

Configration & Dimensions &Windings:

200uH Power Inductor

Coil No.

Copper

Start-Finish

Winding type

N1

1.5*8*2P QZY-2

S-F

Vertical


Electric Parameter:

NO.

ITEM

Test point

SPEC

Test Condition

1

Inductance

S-F

190uH

@0A

2

Inductance

S-F

100uH Min

@250A

3

Withstand Voltage

S-F

Waveform is normal

1.0KV/2S


Advantage:

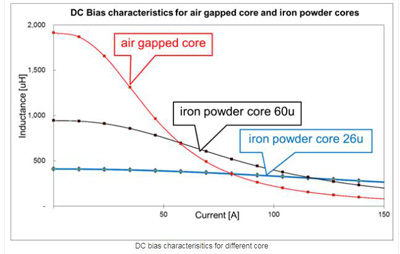

1). Iron Powder Core

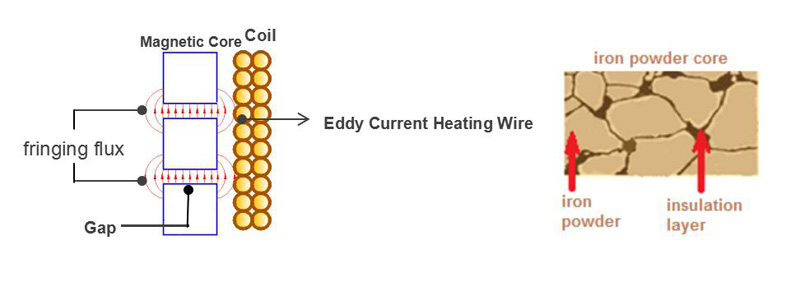

Cutting-cores creates fringing flux and eddy current in coils and magnetic cores. To avoiding saturation level, large headroom in the design. While Iron Powder Core with distributed air gap can reduce fringing flux phenomena.

Flat Wire Toroidal Inductor

Powder cores are distributed air gap cores, with excellent inductance stability under both DC &AC conditions, high resistivity, low hysteresis & eddy current losses.


Flat Wire Toroidal Inductor

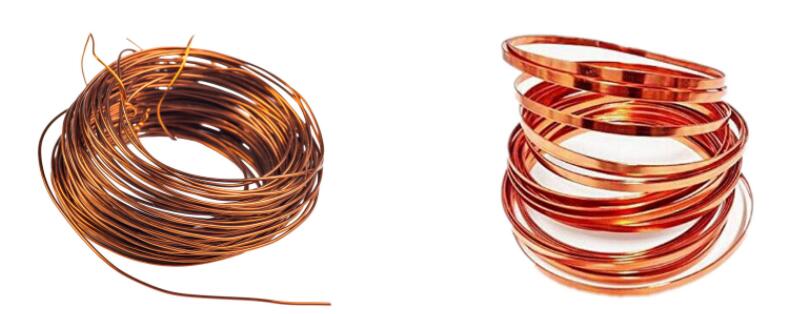

2). Flat Wire

Round Wire Limitations Frequencies >20KHz

Round wire take best efficiency in frequencies up to 20KHz. In higher frequencies, skin effect (with electrons travelling mainly on the surface area of the conductor instead of through the entire cross section) increase AC resistance, flat wire is  more efficient alternative.

power inductor wire

Flat Wire Limits skin effect

Comparing same cross section area round wire,  flat wire surface area up to 60% more, means at higher frequencies flat wire support better skin effect, better for design higher current solutions.

Flat wire's filling factor reach to 93%~95%. In some specific field, flat wire is the only solution to fit in a limited space.

It's popular in UPS, solar, automotive ,industry application.

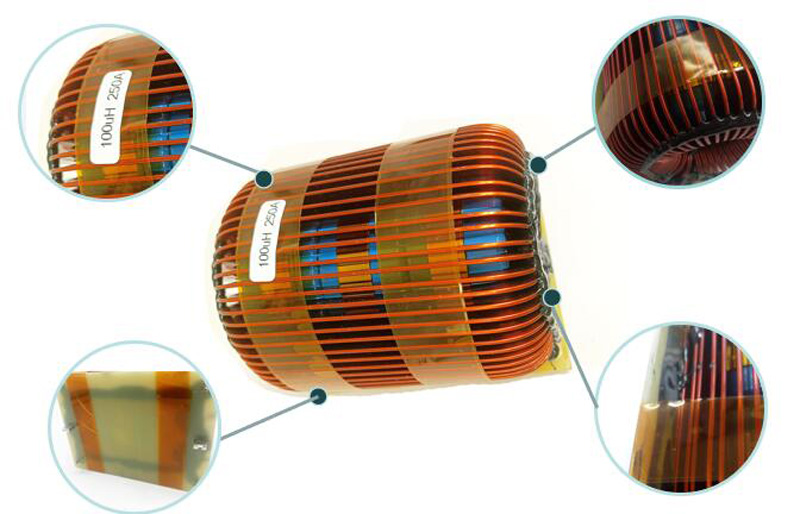

power inductor for EV Pole

Main Application:

New patterns of power consumption and generation are reshaping the way electricity distribution networks are used.Flat Wire Toroidal Inductors are widely used as Booster Inductor & Inverter Inductor, which popular application in:

Power Inductor Application


Relevant electrical parameters required for inductance design

No.

Item

Spec value (with unit)

Remark

1

Circuit topology form



like : boost , invert, etc...

2

Input voltage





3

Output voltage





4

Carrier frequency(working frequency)



necessary

5

Rate current



necessary

6

Inductance at rated current



necessary

7

Peak current



necessary

8

Inductance at peak current



necessary

9

Temperature rise requirements





10

Cooling mode



Fan cooling or water cooling

11

Volume requirements





12

Application area



like UPS, CHARGE , ETC...

13

Ripple requirements








As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Flat Wire Toroidal Inductor quickly!
