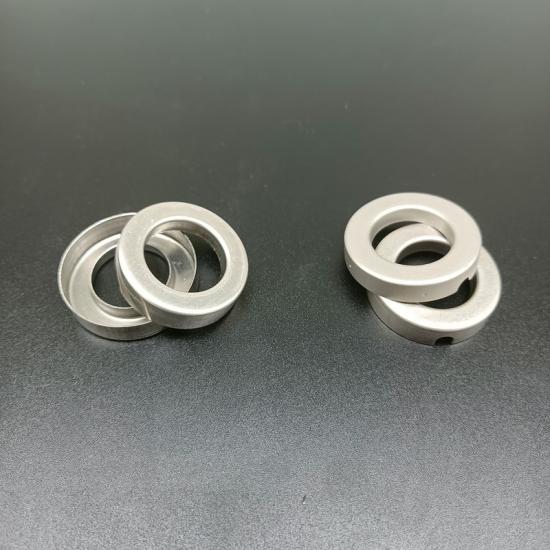

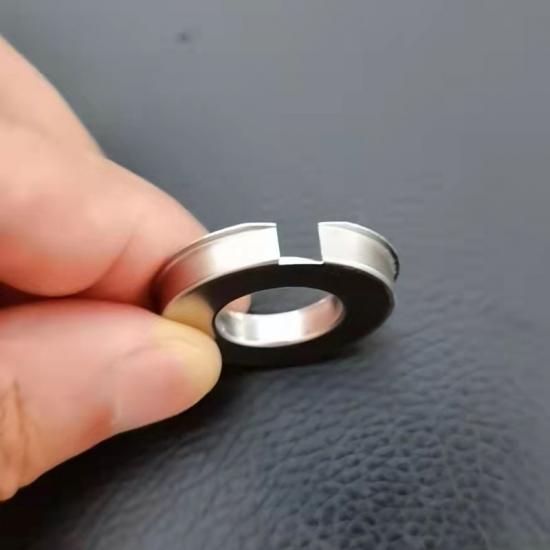

Mu-Metal Permalloy Magnetic Shielding for Flux Gate Application

Mu-Metal Permalloy Magnetic Shielding for Flux Gate Application

Mu-Metal Permalloy Magnetic Shielding widely used in fields such as electronic devices, communication equipment, and automotive electronics

  • Product Detail

1.0 Principle of Permalloy Magnetic Shielding

  • Magnetic shielding characteristics of Permalloy is based on the high permeability characteristics of it.‌ Permalloy is a material with high magnetic permeability.When an external magnetic field acts on Permalloy, magnetic field lines are more likely to pass through the low magnetic resistance material. So that a magnetic flux bypass is formed to avoid the impact of interference sources on protected circuits.
  • In addition, alternating interference magnetic flux will form the eddy currents inside the conductive shielding layer, and the eddy current effect will reduce the strength of the external magnetic field.

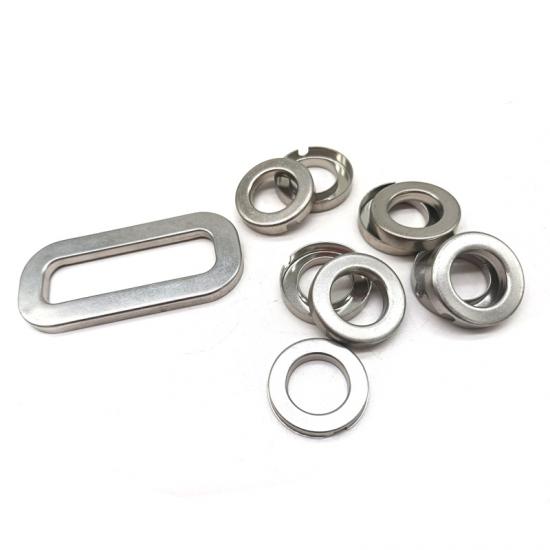

  • The magnetic shielding components are produced with Permalloy material and manufacture processes such as stamping and high-temperature heat treatment.
  • It cause the product have high magnetic permeability and extremely low coercivity, enabling it to have excellent magnetic shielding and anti-interference ability in weak magnetic fields

2.0 Application of Permalloy Magnetic Shielding

Due to the excellent shielding and mechanical properties of Permalloy shielding components,it is widely used in fields such as electronic devices, communication equipment, and automotive electronics.

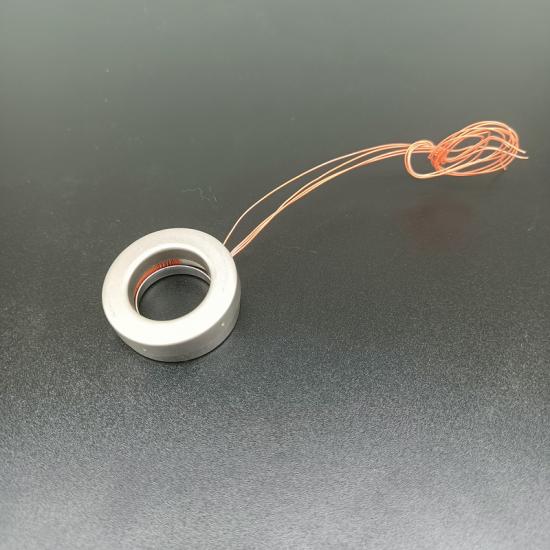

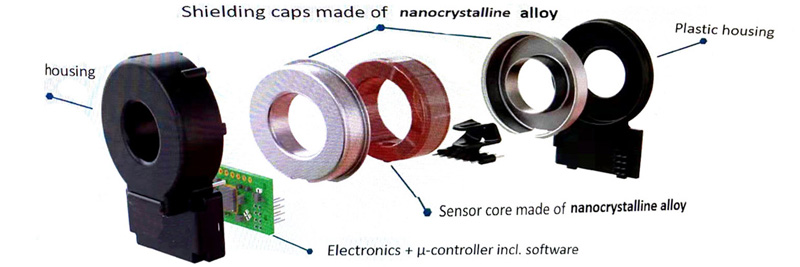

It is suitable for various electromagnetic applications, such as transformers, precision sensors, flux gate transformers, etc


3.0 Recommendedtype ofPermalloycomponents

ITEM

Description

Material Code No.

1J50,1J85

Material Thickness

0.3mm,0.5mm,1.0mm

DeliveryStatus

Annealed



3.1 Magnetic characteristics of Permalloy

Material Code No.:1J85

No.

ITEM

SPEC  VALUE

1

INITIAL PERMEABILITY / µi

≥30mH/m

2

MAXIMUM PERMEABILITY/ µm

≥115mH/m

3

SATURATION MAGNETIC FLUX DENSITY /Bs

0.74T

4

COERCIVE FORCE / Hc

≤ 2.4A/m



Material Code No.:1J50

No.

ITEM

SPEC  VALUE

1

INITIAL PERMEABILITY / µi

≥4.4mH/m

2

MAXIMUM PERMEABILITY/ µm

≥56.3mH/m

3

SATURATION MAGNETIC FLUX DENSITY /Bs

1.5T

4

COERCIVE FORCE / Hc

≤ 10.4A/m






As an leading manufacturer of mognetic products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details aboutMu-Metal Permalloy Magnetic Shielding corequickly!
