HF-T Series Nanocrystalline Core for High Frequency & High Impedance Common Mode Choke (CMC)

HF-T Series Nanocrystalline Core for High Frequency & High Impedance Common Mode Choke (CMC)

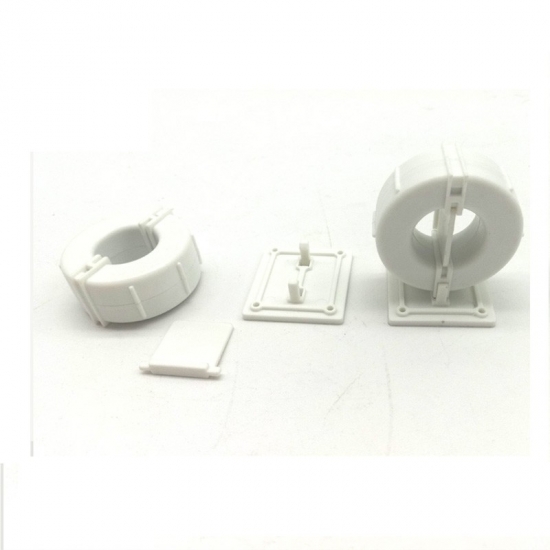

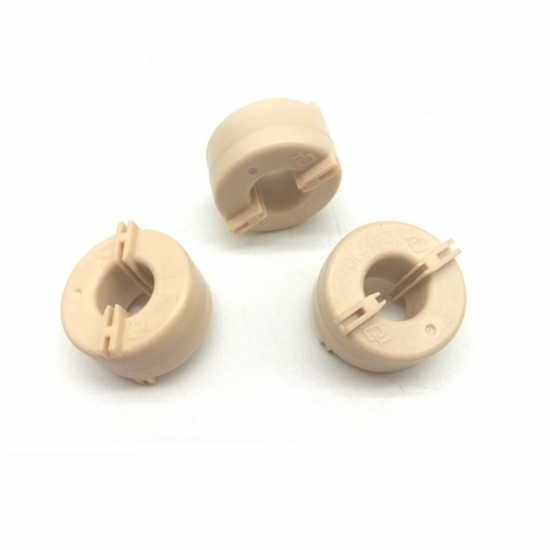

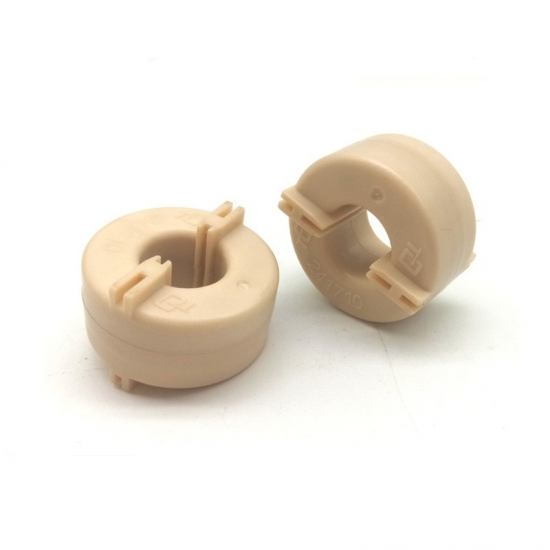

High permeability µi (200KHZ), high L and impedance Z in the high frequency range cmc nanocrystalline core, popular in home application such like refrigerator, microwave oven, air conditioner.

  • Product Detail

Key Properties:

  • High permeability µi (200KHZ), high L and impedance Z in the high frequency range
  • High saturation flux density (1.2T)
  • High curie temperature (580 °C) and excellent temperature characteristics
  • Low remanent flux density Br with DC-tolerance

Typical Parameter



Saturation flux density

Bs = 1.25 T

Density

D= 7.2 kg/m3

Vickers Hardness

Hv= 880 kg/mm2

Electrical Resistivity

ρ=1.3 µΩcm

Crystallization Temperature

Tx >510°C

Tap Thickness:

approx. 18µm

Core Losse (20KHz, 0.5T)

PFe ≤ 20W/kg*

Br/Bs

≤0.2

Magnet Hysteresis loop

cmc

Product Specification:

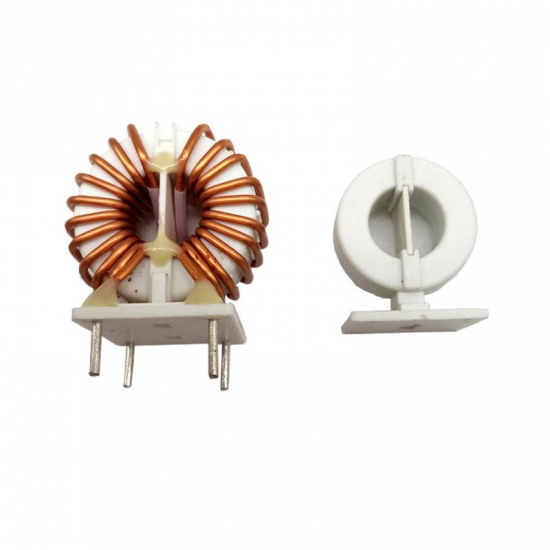

Nanocrystalline Common Mode Choke Core covering: 1-phaseCMCs, 3-phase CMCs, 4 - Fold CMCs.

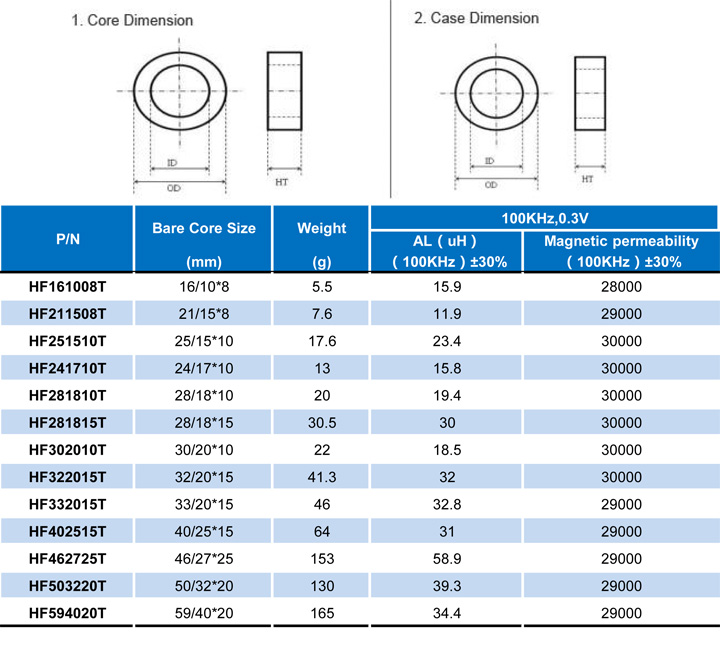

Common Standard High Frequency & High Impedance Common Mode Choke Core Product list :

Nanocrystalline core for HF & High Impedance nanocrystalline

download here.

OEM design is supported. We design & produce goods based on specifications & drawing, specification including:

1.Bare core size, Size finished

2.Al requirement @ different frequency



Main Application:

  • EMC filters
  • Home Application
  • Switched -mode power supplies (SMPS), Power supplies
  • Solar inverters
  • Uninterruptable power supplies (UPS)
  • Welding equipment
  • Wind generators
  • Frequency converters




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about common mode choke quickly!



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
