Line filter is a kind of reflection filters, designed for electromagnetic interference (EMI) in the mains, and it is a frequency-selective two-port network usually composed of inductors, capacitors, resistors.
As a green energy-saving sources, potovoltaic (PV) power system is popular in last dadecase. For the solar power systems, output voltage is low, to increase the output, switched iductor is requested. Line Filter Inductor request inside an inverter design:

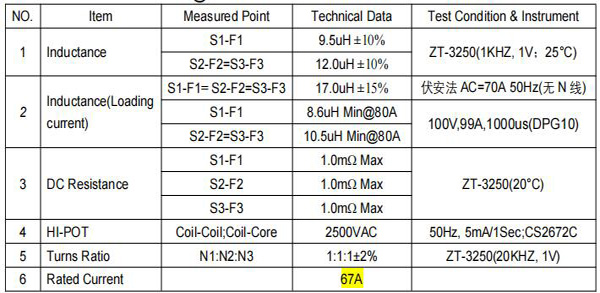

Electrical Characteristics @25°C
Notes: Comply with ROHS

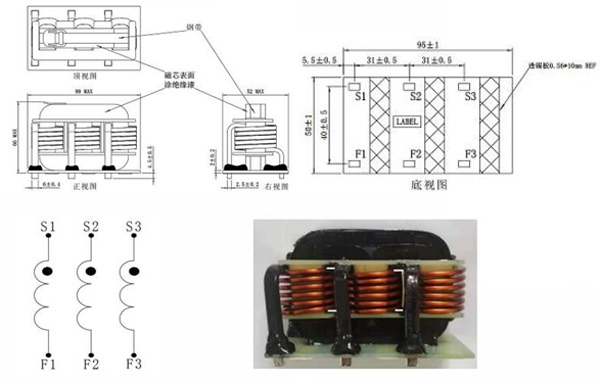

Mechanical Dimension and Schematic
Performance Characteristics:
Our solar inverter design solutions support application both in househould appliances, commercial application and industrial application from 3KW to 125KW. We supply One-stop station energy-saving, high-efficiency elctronic component technology solutions for photovoltaic/wind energy inverters, including:
Application Fields:
As an leading integrated manufacturer of magnetic components, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Photovoltaic Line Filter Inductor quickly!
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
Our product lineup serves a diverse set of photovoltaic/wind energy inverters solutions, help you solve problems at one station.
The boost inverter inductors with sample switch modulation strategy, gurantee inverter has high voltage gain and high efficiency.
The DC EMI filter with fewer winding turns, but higher inductance., gurantee solar inverter has high voltage gain and high efficiency.
The AC Output EMI Filter with fewer winding turns, but higher inductance,compact size of low temperature rising, capable of long-term operation at higher working temperatures
Customized Common Mode Inductor produce, and expert suggestion from us with more stable electronic performance too.
As an integral part of most EMI filters, the common monde inductor with very high impedance over a wide frequency range suppresses high frequency power supply spikes.
The common monde inductor withfewer winding turns, but higher inductance, owning very high impedance over a wide frequency range suppresses high frequency power supply spikes.
High saturate induction reduce volume of transformers, popular in inverter power application.
