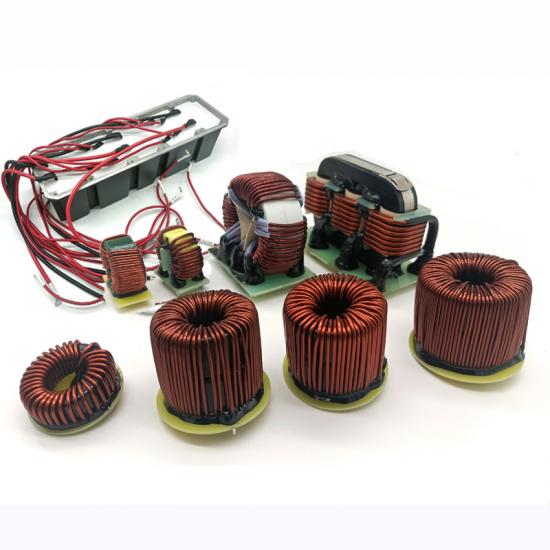

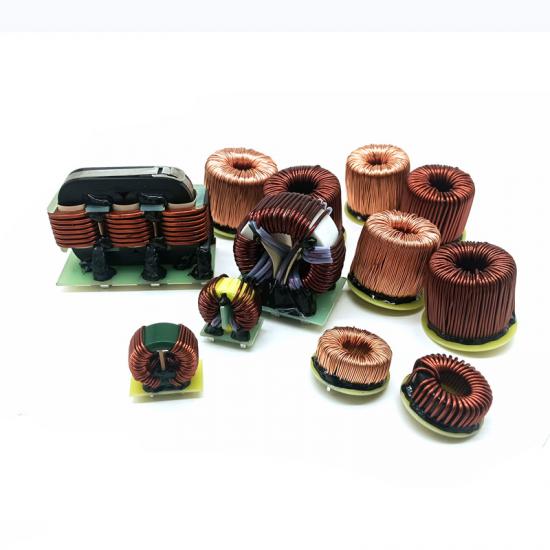

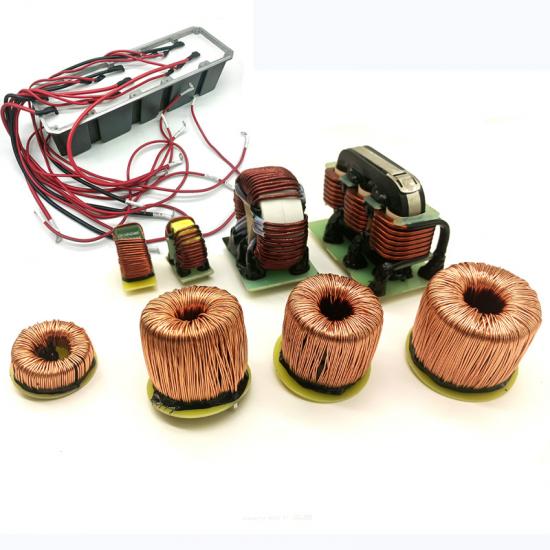

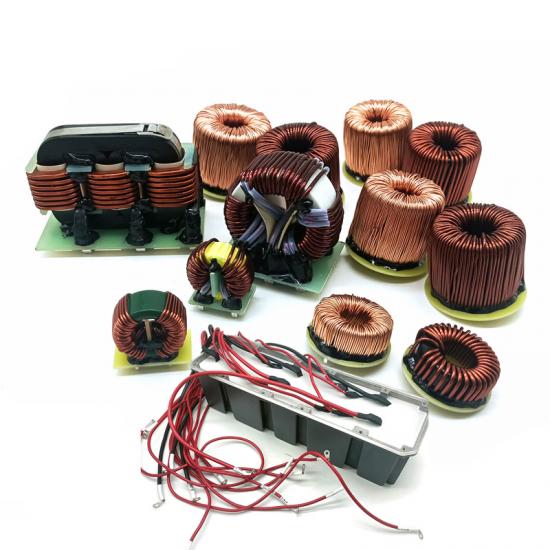

Photovoltaic/Wind Energy Inverter Transformers

The boost inverter inductors with sample switch modulation strategy, gurantee inverter has high voltage gain and high efficiency.

The DC EMI filter with fewer winding turns, but higher inductance., gurantee solar inverter has high voltage gain and high efficiency.

The AC Output EMI Filter with fewer winding turns, but higher inductance,compact size of low temperature rising, capable of long-term operation at higher working temperatures

Line filter is a kind of reflection filters, designed for electromagnetic interference (EMI) in the mains, and it is a frequency-selective two-port network usually composed of inductors, capacitors, resistors.

Customized Common Mode Inductor produce, and expert suggestion from us with more stable electronic performance too.

As an integral part of most EMI filters, the common monde inductor with very high impedance over a wide frequency range suppresses high frequency power supply spikes.

The common monde inductor withfewer winding turns, but higher inductance, owning very high impedance over a wide frequency range suppresses high frequency power supply spikes.

This 200uH power inductor is vertical type design, manufactured with Iron Power Core & 1*8*2P QZY-2 Copper Wire. With flat wire surface area up to 60% more perfect performance of 150uh@250A, popular in EV Pole Charge application.
