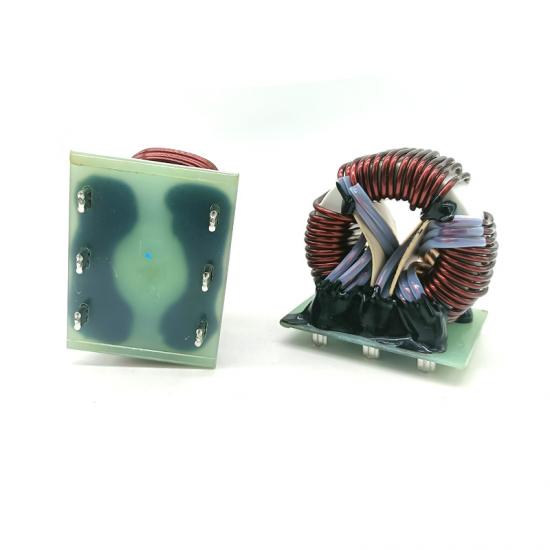

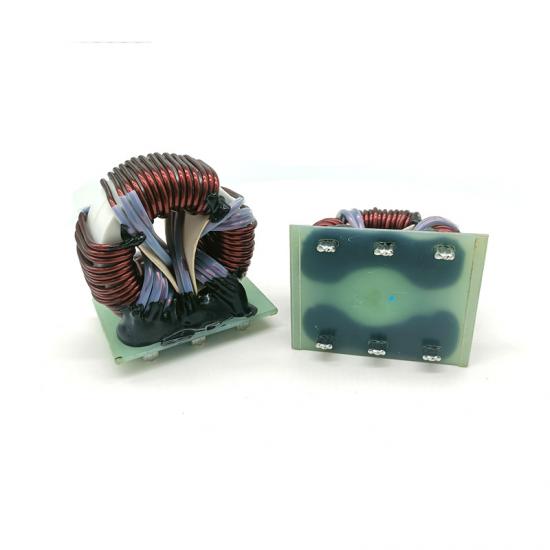

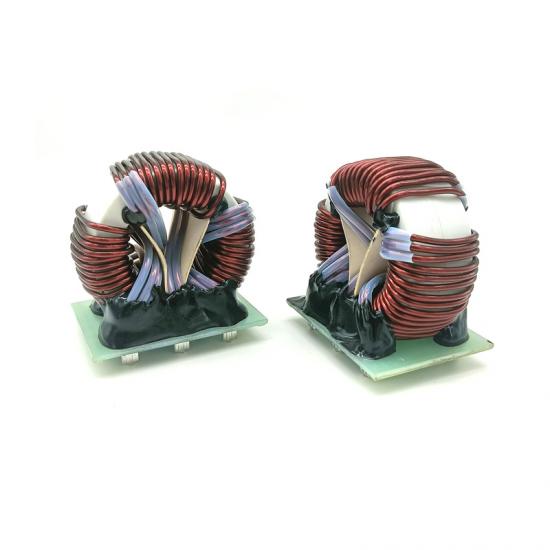

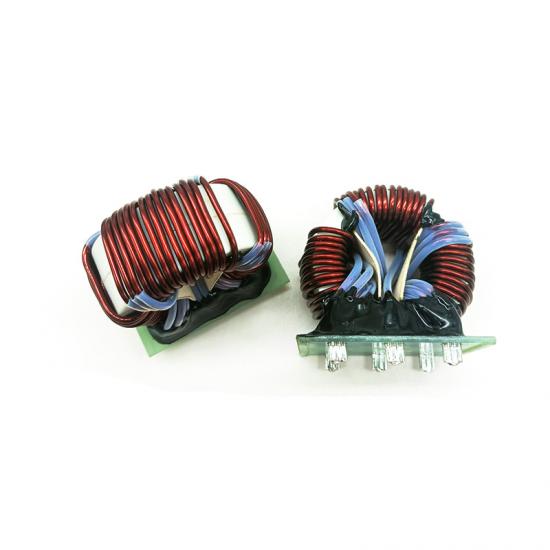

The AC Output EMI Filter with fewer winding turns, but higher inductance,compact size of low temperature rising, capable of long-term operation at higher working temperatures
As a green energy-saving sources, potovoltaic (PV) power system is popular in last dadecase. For the solar power systems, output voltage is low, to increase the output, switched iductor is requested. AC Output EMI Filter inside an inverter:

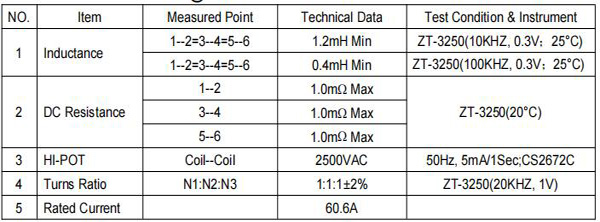

Electrical Characteristics @25°C
Notes: Comply with ROHS

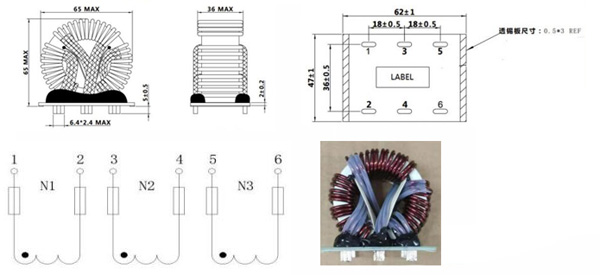

Mechanical Dimension and Schematic
Performance Characteristics:
Our solar inverter design solutions support application both in househould appliances, commercial application and industrial application from 3KW to 125KW. We supply One-stop station energy-saving, high-efficiency elctronic component technology solutions for photovoltaic/wind energy inverters, including:
Application Fields:
As an leading integrated manufacturer of magnetic components, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Photovoltaic AC Output EMI Filter quickly!
