Toroidal Transformer

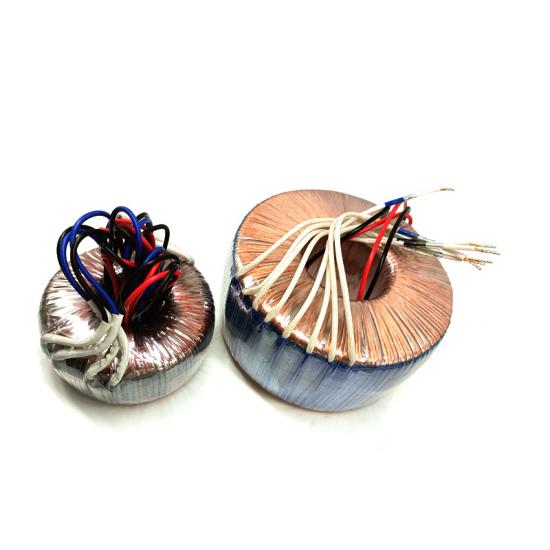

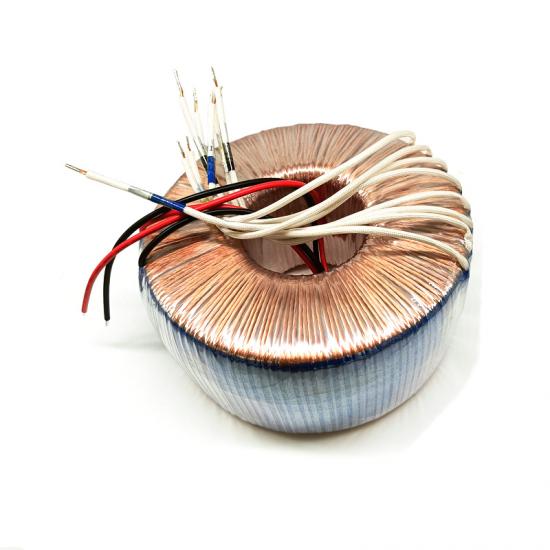

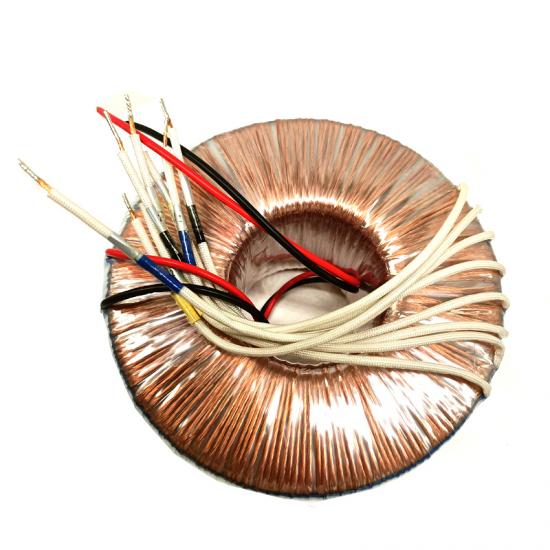

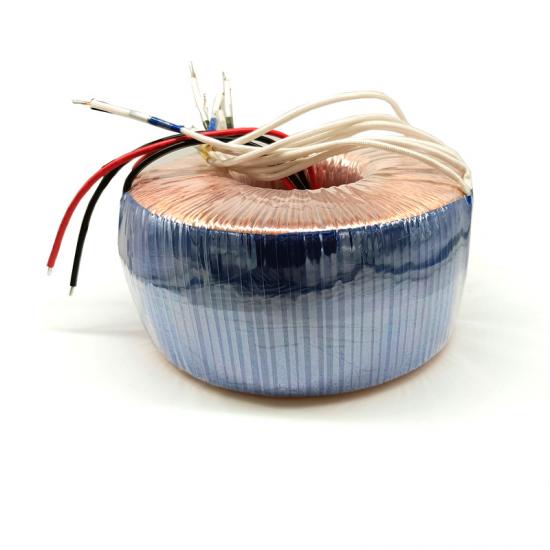

Toroidal Transformer Copper Wire Tube Amplifiers Output Transformer

Toroidal Transformer Copper Wire Tube Amplifiers Output Transformer

Toroidal output transformers, popular in industrial, green power, railway, medical, lete-communications, defence field.

  • Product Detail

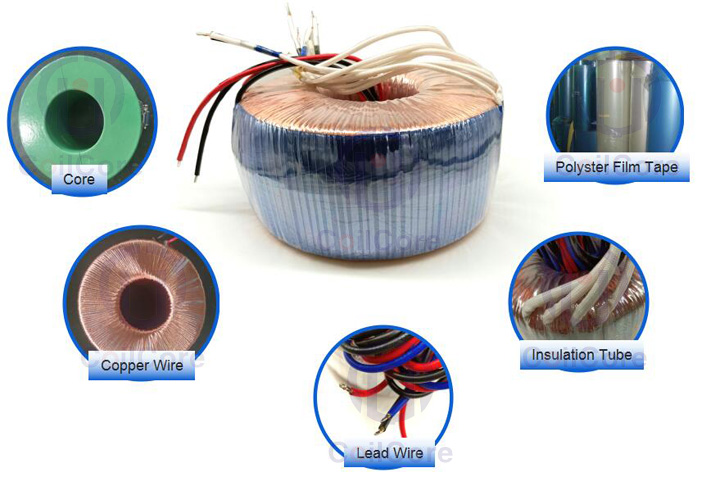

Key Properties:

  • Core: Low power loss and high Bs
  • Insulation Tube: High stage and high dielectric strength
  • Polyester Film tape: High temp resistance, 94V-1, 3KV withstand voltage
  • Lead wire: High temperature resistance, Tin plating, 100% copper wire.
  • Winding wire: 100% copper wire and High temperature resistance 155


Electronic Parameter:

Typical Parameter



Type

Toroidal Transformer

Product Name

Output Transformer

Core

NANO epoxy coated core 162*80*70(35+35) and cut into two-halves
air gap 2*0.25mm

Coil Winding

Primary: Ф0.3mm copper wire  230Ts *12layers =2760Ts(single winding)
Secondary: Ф0.2mm*35 LITZ wire  46Ts *4 zones

Lead Wire

isolated with fiberglass tube and tinning the end 10mm

Degree of Protection

IP00

Certificates

ISO9001,ISO14001,ISO45001


 Reference Size:

Rated Power

Efficiency

No-load Loss

Diameter

Height

Weight

15VA

86%

0.31W

59mm

40mm

0.42Kg

30VA

86%

0.43W

70mm

38mm

0.54Kg

50VA

86%

0.52W

81mm

43mm

0.71Kg

75VA

86%

0.60W

94mm

41mm

0.95Kg

100VA

87%

1.14W

92mm

57mm

1.34Kg

150VA

90%

1.37W

119mm

46mm

2.12Kg

200VA

91%

1.95W

121mm

60mm

2.84Kg

250VA

92%

2.02W

132mm

57mm

3.24Kg

300VA

93%

2.10W

132mm

62mm

3.58Kg

500VA

94%

3.12W

158mm

64mm

5.50Kg

750VA

96%

4.84W

169mm

80mm

7.58Kg

1000VA

96%

6.94W

202mm

75mm

10.42Kg

2000VA

98%

11.42W

208mm

89mm

16.34Kg


Main Application:


  • Green Power
Coilcore components for green energy market covering  isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.
  • Military

Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.

Tele-communications

Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.

  • Medical

Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transformer with low stray field and low leakage current levels.

  • Industrial

Our core competency magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.

  • Rail

Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, EMC filters, HF chokes for railway and train applications.


Customized Design Process:

OEM design is supported. We design & produce goods based on specifications & drawing, specification including:


  • What's the transformer input voltage?
  • If work frequency is 50~60Hz? Or others?
  • What's the transformer output voltage?  What's the quantities of output voltage  port?
  • What's the work power?
  • Any special installation size request? Or just do it as small as possible?




As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Toroidal Output Transformer quickly!

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
