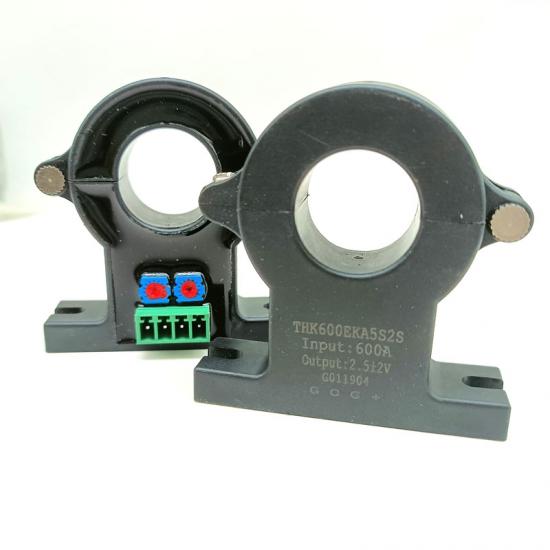

THK600 EKA5S2 Open loop current transducer using the hall effect for the electronic measurement of current: DC, AC, Pulsed, with galvanic separation between primary circuit and secondary circuit, which supply voltage DC+5.0V.

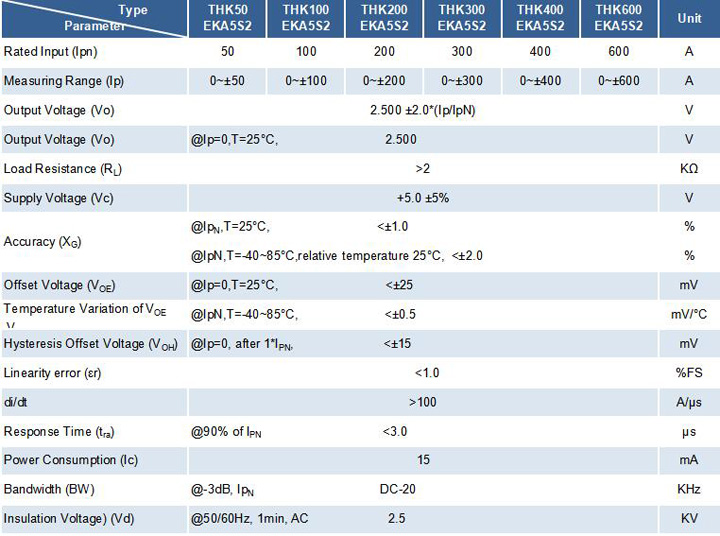

Electrical data: (Ta=25°C, Vc=+5.0VDC, RL=2KΩ):
Remarks:
General Data:
|
Parameter |
Symbol |
Value |
Unit |
|
Operating Temperature |
TA |
-40~+85 |
°C |
|
Storage Temperature |
Ts |
-55~+125 |
°C |
|
Mass |
m |
70 |
g |
|
Plastic Material |
PBT G30/G15, UL94-V0 |
||
|
Standards |
IEC60950-1:2001 |
||
|
EN50178:1998 |
|||
|
SJ20790-2000 |
|||
Main Application:
An open loop device hall effect current Sensor based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provided to measure DC, AC and pulse current and another arbitrary waveform current.
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Open Lope Hall Sensor quickly!
