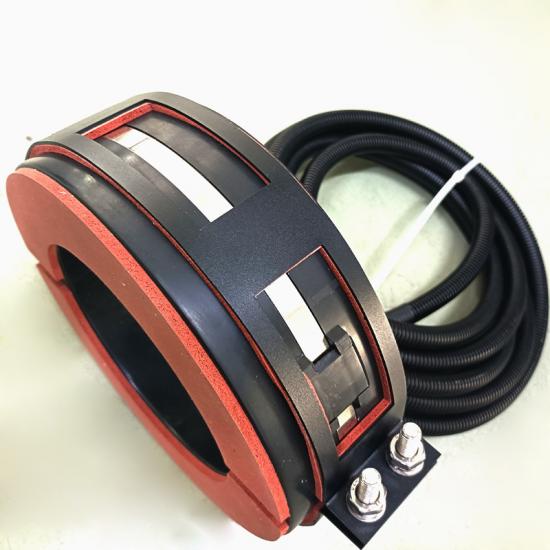

Inductive Power Supply Current Transformer

The inductive Power Supply Current Transformers usually installed outdoors or in underground cable trenches and tunnels, with the working environment maybe raining, moisture, water accumulation. Once the split core CT with poor structure, the core cutting surface will be easy to rust, which affects the power supply ability, increasing working noise, even can't work. After long time R&D, our Coilcore's latest inductive Power Supply Current Transformers reach IP68 standard, which can achieve zero noise operation.

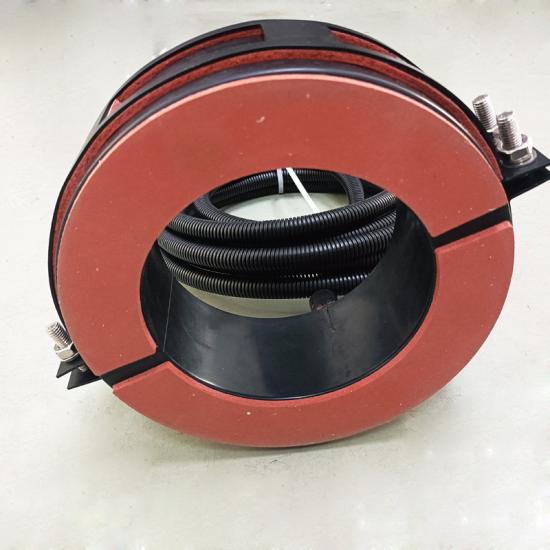

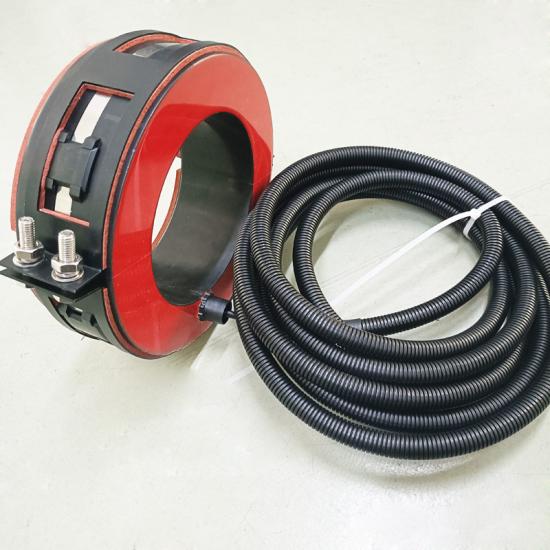

Product Detail

Key Properties:

1. Zero Noise Energy harvesting capability.

We updating flat grinding technology, guarantee the cut iron core is perfectly fitted, reducing the noise of iron core suction greatly.
With the vacuum impregnation process, the cured epoxy resin is fully penetrated into the inter layer of core, enhancing the adhesion between core layers, reducing the magnetostriction caused by magnetic field changes, and finally reducing the the CT's working noise.
Combining self-developed induction power supply to achieve zero noise power supply operation.

2. Excellent waterproof structure, IP68.

The excellent grinding technology guarantee cutting surface is ground to a horizontal mirror surface, and the patented waterproof structure design make sure final assemble achieve IP68 waterproof and dustproof rating.

3. Anti open circuit protection

To prevent the power supply CT lead wire disonnected by some reasons, the secondary side is in an open cuircuit state, the primary current is all used for excitation, which may cause the core to be supersatrated, the CT to generate heat, and a fire accident may occur.
The anti open circuit module limits the secondary circuit to below 90VAC, reducing the risk of electric shock during installation.
Due to the presence of the anti open circuit module, the secondary side circuit will experience intermittent short circuits, and the core suction force of the power supply CT is relatively small, reducing installation difficulty.

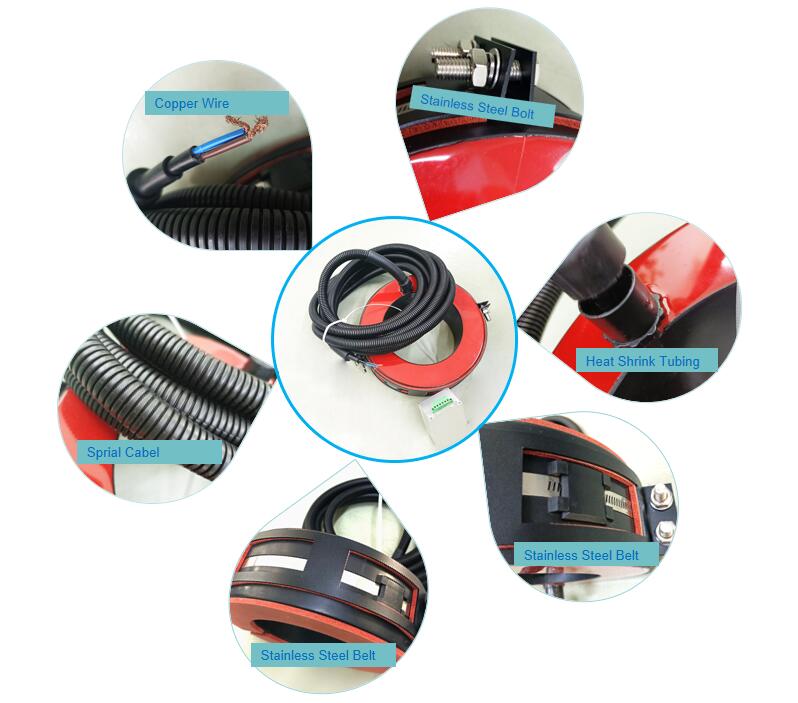

4. Multiple strengthen protection

Core surface anti-rust treated
Lead wire protected by Corrugated pipe
Lead corrugated tube protection
Strengthen clamps, shock-absorbing pads

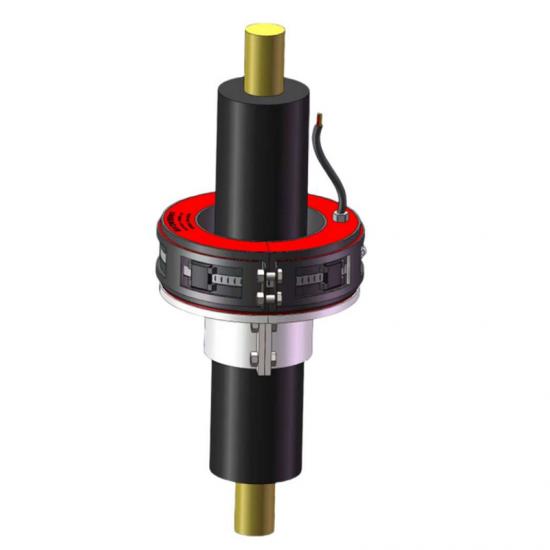

Application:

Energy harversting of Cable tunnel & Cable trench
Cable fault location monitoring device
Cable circulation monitoring system
Cable partial discharge monitoring device
Cable comprehensive monitoring system

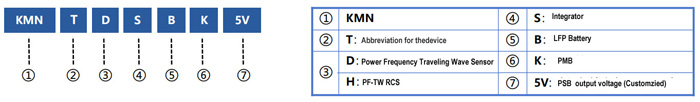

Reference Items:

Technical Parameter:

Item	Parameter	Remark
Work Frequency	50Hz ~ 60Hz
Max. Loading Current of Lead Wire	1500A
Withstand Wire Surge Current	31.5KA 4S
Protection Leval	IP68
Anti Open Circuit Voltage	90VAC	Can be ajusted, Anti-open circuit voltage is the Max. value, not the valid value.
Temperature Rise	<55°C of long period operation
Lead Wire	Outdoor Copper Wire 2*1mm2	Can be adjusted based on request
Winding Wire	1.mm enameled wire	Can be adjusted based on request
Operation Noise	850A horizontal distance 1 meter test,< 5 decibels
Shipping Inspection Standard (25°C Test)	15A Output Power >1W	with 12V Energy Harvesting Module testing
Dimension	KMN120 CT : ID120x OD205x H85mm (±1mm) KMN160 CT : ID160x OD250x H80mm (±1mm) KMN180 CT : ID180x OD270x H80mm (±1mm) KMN200 CT : ID200x OD300x H55mm (±1mm)	Other size can be Customzied
Gross Weight	KMN120 CT : KMN160 CT : about 9.1kgs KMN180 CT : KMN200 CT :

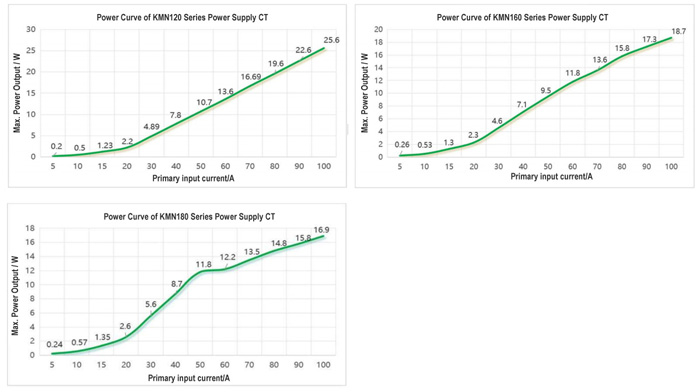

Power Curve

Connect with 12V output induction power supply module to the electronic load test. Due to individual differences in the performance of the power supply CT,this test result just for reference.
