Amorphous C Cutting Core

  • September 14. 2021
Coilcore's AMCC series amorphous c cutting core is made by 1K101 Iron-base amorphous alloy, with material features:
  • Saturation flux density induction: 1.56T
  • Curie temperature(℃): 410
  • Stacking factor: >0.8
  • Saturation magnetostriction(*10^-6): <30
  • Resistivity (μΩ.cm): 110
  • Ribbon thickness: 25μm

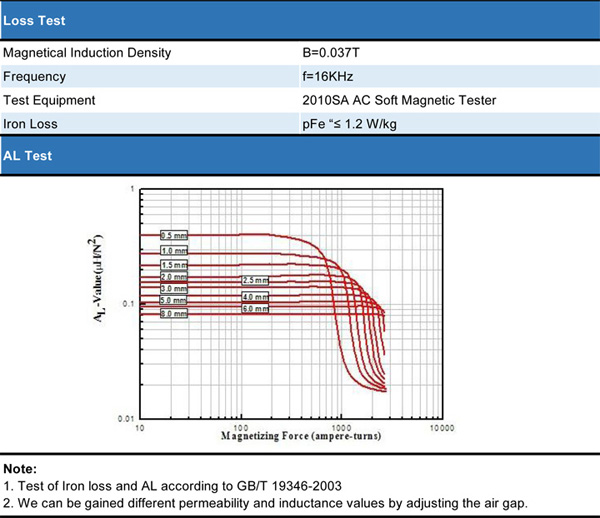

Amorphous AL Testing

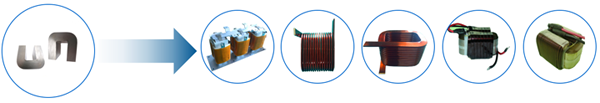

Such low core loss & high saturation flux density cut cores popular application in:

  • Power Factor Correction Chokes
  • High Power Outdoor Industrial Ballasts
  • Welding Power Supplies
  • Auto Inductors
  • Solar Inverters
  • Wind Power Inverters
transformer c core application
All our amorphous transformer c cores passed BH curve testing.

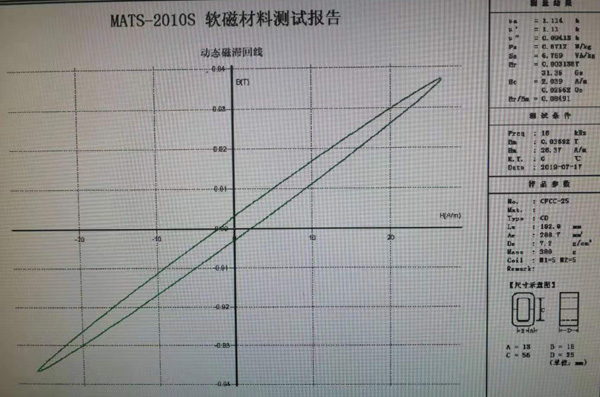

C Core BH Curve testing
More information, please contact us freely.
