VITROPERM 550HF Matereial Soft Magnetic Core, Inductance 610.1 µH ≤ AL ≤ 16.9 µH @Ieff x N = 30 mA f = 10 kHz
Key Properties:

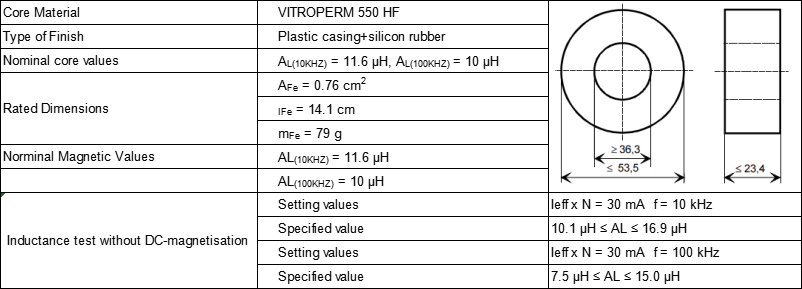

Product Specification:
We design & produce goods based on clients' specifications & drawing:
1.Bare core size, Size finished
2.Al requirement @ different frequency
Main Application:
Our nanocrystalline core CMC popular in home electronic application, such as: washing machine, AC, Air Purifiler, Coffer Maker, Bread Maker, etc.
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about common mode choke core quickly!
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Nanocrystalline cores for common mode chokes, core with high permeability μi (200KHz) and high L impedance Z,which popular in home application such like wind generator, frequency converters.
VITROPERM 550HF Matereial Core, Inductance 60.8 µH ≤ AL ≤ 117 µH @Ieff x N = 25 mA f = 10 kHz
VITROPERM 250F Material core, Soft Magnetic Core with Inductance 2.28 µH ≤ AL ≤ 4.57 µH @Ieff x N = 30 mA f = 100 kHz
High saturate induction reduce volume of transformers, popular in inverter power application.
Application Area New nergy vehicle motor: 400~2000Hz, 1~200KW; High speed spindle motor: rotation speed: 60000-200000,1.25~80Kw; Medium frequency motor / generator for navigation, aviation and Aerospace; Automobile and commercial high performance air conditioning compressor; High speed mico and special motors for electric tools, medical treatment, home applicances and Industry.
The DC EMI filter with fewer winding turns, but higher inductance., gurantee solar inverter has high voltage gain and high efficiency.
High accuracy nanocrystalline cores, for low voltage instrument current transformer, medium voltage instrument current transformer, high voltage instrument current transformer in industry application.
This 200uH power inductor is vertical type design, manufactured with Iron Power Core & 1*8*2P QZY-2 Copper Wire. With flat wire surface area up to 60% more perfect performance of 150uh@250A, popular in EV Pole Charge application.
